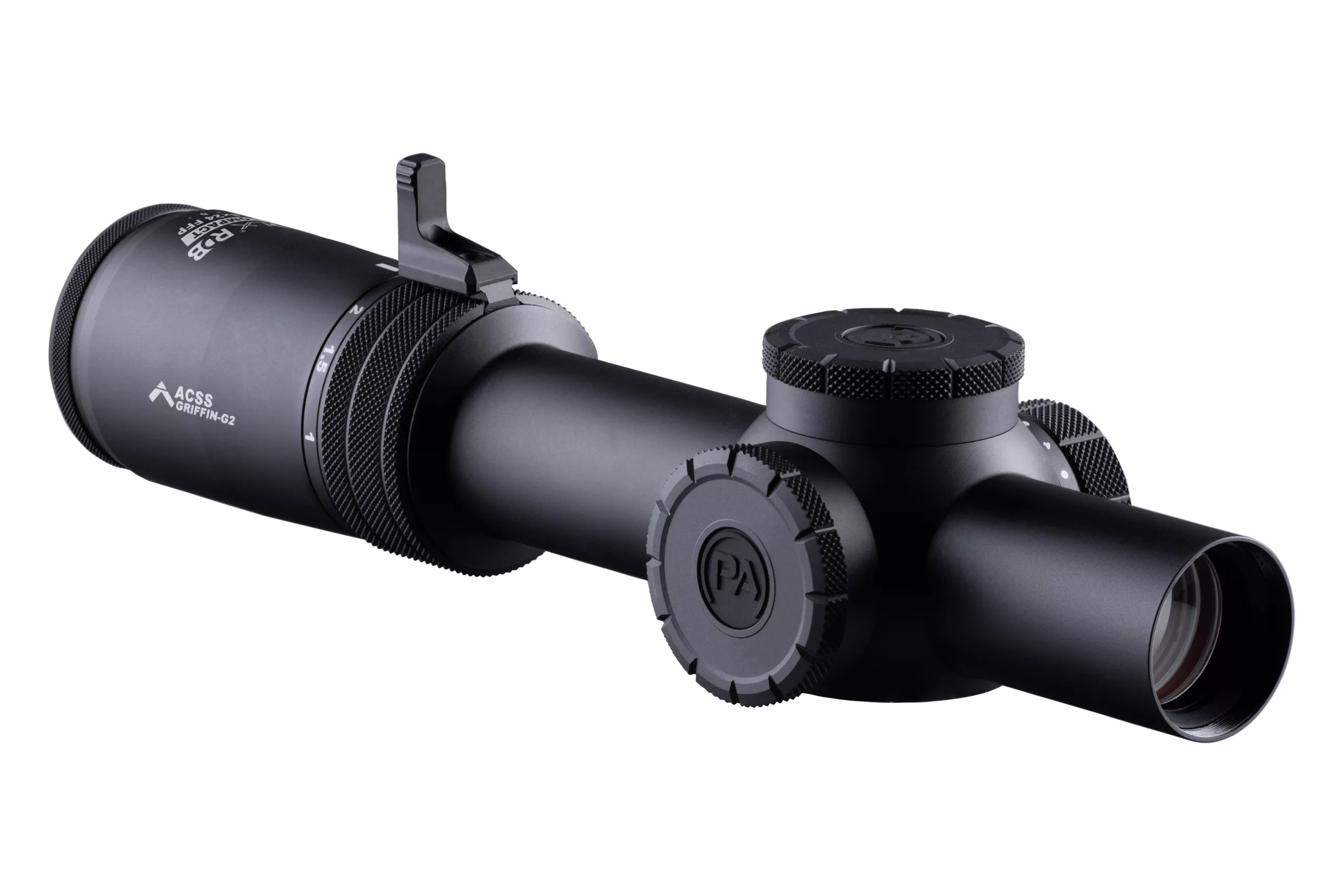

Primary Arms Compact PLxC 1-8×24 FFP RDB Rifle Scope – Black

SKU: PA-PLXC-1-8X24F-RDB-PARENT

$1,999.99

Where to Buy
Backed by Our Lifetime Warranty

Product Details

The PLxC 1-8x FFP Compact Rifle Scope is now our first scope to feature RDB (Red Dot Bright®) diffractive reticle technology. This unique design is much more efficient than traditional etch-and-fill reticles delivering red dot brightness without compromising battery life all while still utilizing a first focal plane reticle. The more efficient and brighter illumination is further improved by the use of our AutoLive® technology that helps to conserve battery life and ensures your reticle is visible the moment you need it.

The PLxC 1-8x RDB utilizes premium-grade Japanese ED lenses for superior light transmission, color correctness, and image clarity and when combined with its ultra-wide field of view (121ft @ 100yd) and forgiving eye relief, this scope is capable of exceptional performance from close quarters to long-range. The integrated magnification lever allows for quick transitions from 1x to 8x while the first focal plane reticles stay true at every magnification level for accurate holdovers no matter the distance.

All these features are packed into the same compact scope body that you know and love. At only 9.28 inches long and weighing 16.95 ounces, this 1-8x low power variable optic is designed to be extremely water and shock resistant without adding unnecessary weight to your fighting rifle and giving you the capabilities you need to get the job done in close quarters out to 800 yards.

Technology

AutoLive®
ED Glass
Interchangeable Turrets
Multicoated Lens
Red Dot Bright®
Shockproof
Steel-on-Steel (SOS®)
UML Levers
Waterproof
Learn More

Available Reticles

ACSS Raptor 5.56 Yard G2

Calibrated for 5.56, .308, and similar cartridges, the diffractive ACSS Raptor G2 combines the best of our BDC design with a true Red Dot Bright® horseshoe and chevron. This reticle offers full vertical and horizontal ranging stadia, as well as moving target leads and wind holds.

ACSS Griffin MIL G2

For those who prefer MIL units, our diffractive Griffin MIL G2 offers a full MIL grid with our iconic fast-acquisition horseshoe and chevron. It includes both vertical and horizontal ranging stadia, so you can quickly determine your holds.

Technical Specifications

Battery Type

CR2032

Brand

Primary Arms Optics

Click Value

0.1 MIL

Color

Black

Exit Pupil Diameter

Low: 8mm / High: 3mm

Eye Relief

Low: 3.2 in / High: 3.7 in

Finish

Hardcoat Anodized

Focal Plane

First Focal Plane

Field Of View @ 100yds

Low: 121 ft / High: 14.6 ft

Illumination

Illuminated

Magnification

1X – 8X

Mount Compatibility

30mm

Objective Diameter

24mm

Optic Length

9.28 in.

Optic Series

PLx

Reticle

ACSS Griffin MIL G2, ACSS Raptor 5.56Y G2

Reticle Color

Red

Total Elevation Adjustment

100 MOA

Total Windage Adjustment

100 MOA

Warranty

Lifetime

Weight

16.95 oz.
